ArcGIS REST Services Directory Login
JSON

Layer: Subdivisions (ID: 0)

Name: Subdivisions

Display Field: XREFOFSECTION

Type: Feature Layer

Geometry Type: esriGeometryPolygon

Description: XREFOFSECTION - The first 6 digits of the 13 digit FBCAD parcel data contains this information. The first four identify the subdivsion and the two after the dash identify the section number. The following information appears on the front page of all recorded plats. There is also a spreadsheet in development (3 actually) that has this information. Search under plat. These should be the only 2 sources for the following information:SUBDIV_NM - Subdivision name as it appears on the recorded plat. The word "subdivision" and "plat" should not appear in the name.Abbreviate as follows: STD - street dedicationPH - phase (followed by roman numerals for each phase number)RP - replat (followed by numeric designation, if applicable)MRP - minor replat (followed by numeric designation, if applicable)AP - amending plat (followed by numeric designation, if applicable)PRP - partial replat( followed by numeric designation, if applicable)"Reserve" should be spelled outFor numeric portions of the subdivision (amending plat 3, replat 2, etc. ) use on the numeric portion. Do not put # or NO.Only schools, recreation sites, treatment plants, etc. can have the prefix NO to indicate the numberno punctuation or special characters (&, , /. etc. SECTION - Subdivision section numberas indicated on the platLOTS - numeric value of lotsBLOCKS - numeric value of blocksRESERVES - numeric value of reservesACRES - acres as recorded on platDO NOT CALCULATE GEOMETRY TOOL FOR THIS FIELD.RECDATE - date that the plat was recorded with the county. It is stamped with an offical county seal. Use this date. Use Calculate Geometry for the next two:XLP - the x coordinate of the center of the polygonYLP - the y coordinate of the center of the polygonTYPE: - the type of development. Use the following naming convention:APARTMENTS - multi-family dwellingsSCHOOL - public schools onlyRESIDENTIAL - single, mutli family (apartments, condos, duplexes, mobile home parks, etc.)COMMERCIAL - strip malls, single/multi business entitiesRESERVES - (this is for the entire subdivision boundary and usually is for drainage)PUBLIC - (school, county, city, etc.)ROW - street dedication. Sometimes reserves and ROW are together, default should be ROW . If it is residential/commercial with an STD or ROW - go with residential/commercial. ALIAS - this is the informal or common name for a subdivision section. Example: The Willows, The Grove, Veranda, Verado. All alias names should be proper case - capital first letter of each word except prepostions in the middle of the title (Example: The Gates of the Preserve)

Service Item Id: ab236674c3ac444b8f99f4414c68f7c0

Copyright Text: Fort Bend County Engineering GIS

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:
Drawing Info: Advanced Query Capabilities:
HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:
Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

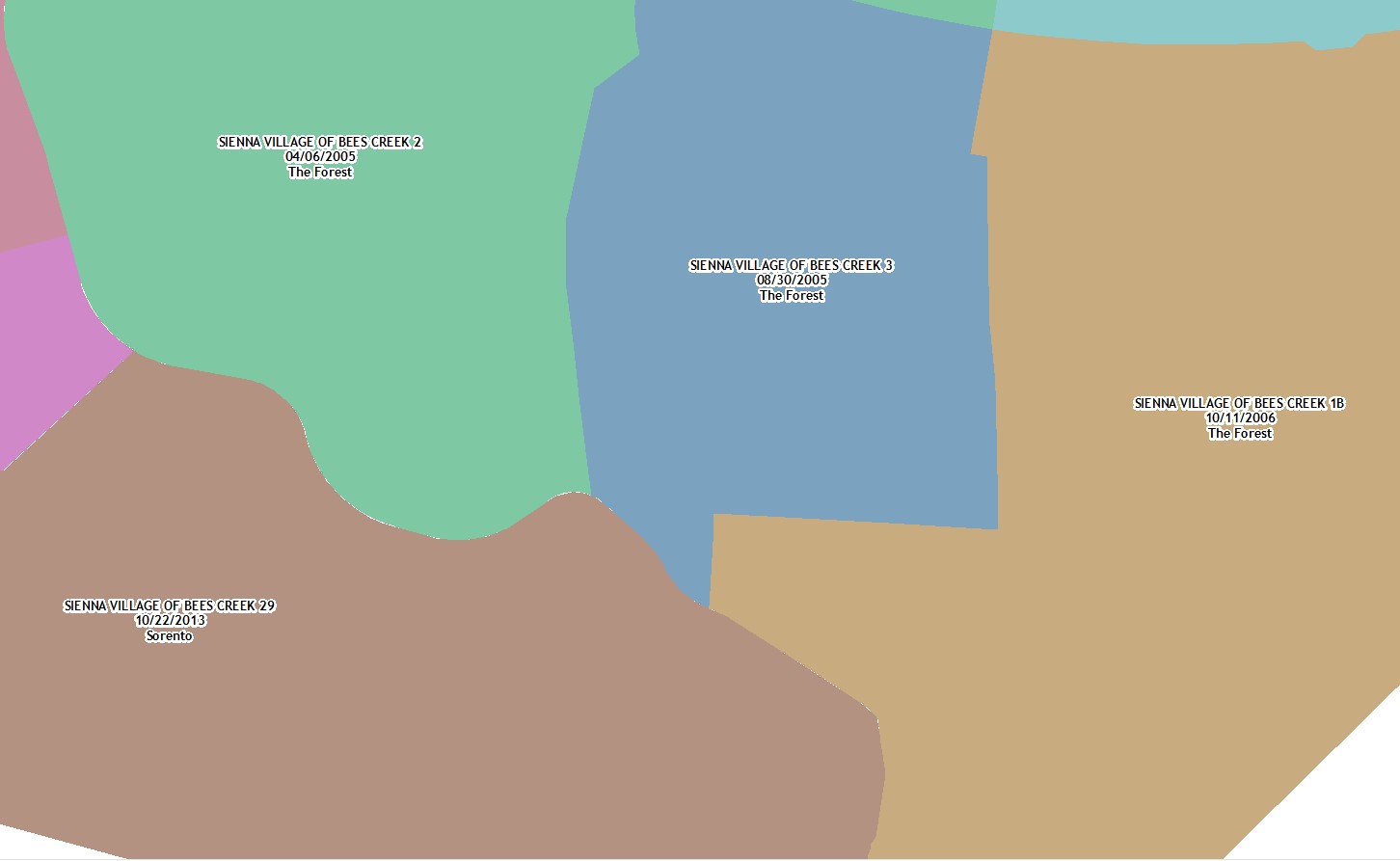

  Iteminfo   Thumbnail   Metadata
